What Are Thrust Ball Bearings and How Do They Work

Thrust ball bearings help you support axial loads and reduce friction along the axis of rotation. When you use thrust bearings, the two washers and a set of balls distribute force evenly and allow for seamless rotation. This design prevents shaft movement and keeps your bearing system running smoothly.

• The Thrust Ball Bearings market was valued at USD 2.5 Billion in 2024.

• It is projected to grow at a CAGR of 6.5% from 2026 to 2033.

• The market is expected to reach USD 4.0 Billion by 2033.

Thrust Ball Bearings Overview

Thrust Ball Bearings Definition

You encounter thrust ball bearings when you need to support forces along the axis of a rotating shaft. These rotary bearings are designed for axial loads, not radial loads. You use them in situations where you want to prevent movement along the shaft’s axis and maintain smooth rotation.

Here is a table that shows the difference between axial and radial loads:

Function of Thrust Ball Bearings

You rely on thrust bearings to prevent shaft drift and support axial forces. The main function of a thrust bearing is to keep the shaft in place while allowing it to rotate freely. This helps you avoid unwanted movement and ensures stability in your machinery.

The structural design of thrust ball bearings improves performance in several ways. The table below highlights key metrics:

How Thrust Bearings Work

You see the working principles of thrust bearings in action when the bearing supports axial loads and allows the shaft to rotate smoothly. The spherical balls roll between the washers, reducing friction and distributing force evenly. The cage keeps the balls separated, which prevents contact and minimizes wear.

• Thrust ball bearings are specifically designed to support axial loads.

• The spherical balls help maintain low friction during operation.

• The compact structure makes thrust bearings suitable for low-speed applications with small to medium axial loads.

• Thrust bearings can handle high axial loads but are not designed for radial loads.

• The washers have raceway grooves that guide the balls and ensure smooth movement.

When you select a thrust bearing, you need to consider its load capacity and speed limitations. Here are some important points:

• Reference speed indicates the maximum speed at which a bearing can operate without overheating, following ISO 15312 standards.

• Limiting speed represents the mechanical threshold for safe operation, especially for sealed bearings.

• Light load operations are essential, with thrust bearings typically having a load ratio of P = 0.02 C0.

use thrust ball bearings in many machines where you need to support axial loads and maintain stability. Understanding how thrust bearings work helps you choose the right bearing for your application and ensures reliable performance.

Types of Thrust Bearings

Single Direction Thrust Bearing

You use single direction thrust ball bearings when your application only needs to support axial loads in one direction. These thrust bearings work well in pumps and electric motors, where the force always pushes the shaft in the same way. The design includes one set of balls and two washers. The balls roll between the washers, reducing friction and supporting the load. You find these bearing types in systems that do not reverse the direction of force.

Here is a table showing suitable applications for each type of thrust bearing:

Double Direction Thrust Bearing

You need double direction thrust ball bearings when your system faces axial loads from both sides. These thrust bearings have two sets of balls and three washers. The middle washer sits between the two rows of balls, allowing the bearing to handle force from either direction. You often see these bearing types in machine tools and cranes, where the load direction changes during operation.

Selection Criteria

When you select thrust bearings, you must consider several factors. The direction and magnitude of the load play a key role. You also need to think about speed, temperature, and accuracy. The right choice helps you avoid breakdowns and ensures long-lasting performance.

Here is a table that summarizes important selection criteria for thrust ball bearings:

You should also look at the magnitude and direction of the load:

You see thrust roller bearings used in similar ways, but they handle heavier loads and work in tougher conditions. Always match the types of thrust bearing to your specific needs. You improve reliability and efficiency by making careful choices.

Thrust Bearing Applications

Common Industries

You see thrust bearings used across many industries. These components play a vital role in systems that require support for axial loads and smooth rotation. You find thrust ball bearings in the following sectors:

• Automotive

• Aerospace

• Construction

• Marine Equipment

• Food Processing

• Medical Devices

The automotive industry relies on thrust bearings for precision-engineered parts. You encounter them in gearboxes, clutches, and differentials. Aerospace companies use thrust bearings in engines and landing gear, where reliability is essential. Construction equipment benefits from thrust bearings in heavy-duty machinery. Marine applications depend on these bearings for stability in ship engines and steering systems. Food processing and medical device manufacturers require bearings that withstand contaminants and frequent cleaning.

Here is a table summarizing the suitability of thrust bearings in various industries:

Typical Use Cases

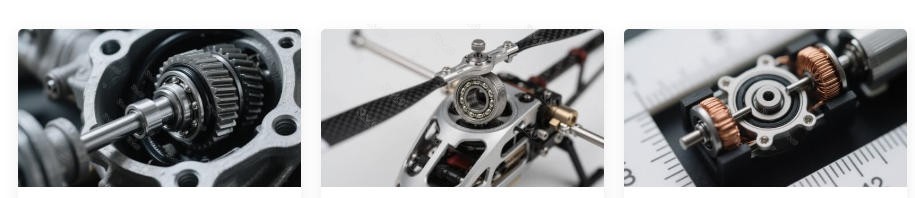

You encounter thrust ball bearing applications in many everyday machines. In automotive systems, thrust bearings manage axial loads in power transmission, clutches, and differentials. These bearings help you achieve smooth gear shifts and efficient power transfer, which improves vehicle performance and fuel efficiency.

In aerospace, thrust bearings support flight control surfaces, landing gear, and auxiliary power units. You rely on these bearings for safety and efficiency during flight. Their precision and reliability directly affect flight safety and fuel consumption.

Food processing equipment uses thrust bearings made from high-purity materials. You need bearings that resist corrosion and maintain performance during exposure to humidity and cleaning. Martensitic stainless steel and nitrogen-enhanced alloys offer superior resistance and fatigue life.

Medical devices require miniature thrust bearings with shields and seals. You protect these bearings from contaminants like blood and saline solutions. Sterilization processes expose bearings to rinsing liquids and high-pressure steam, so you must choose designs that maintain performance under these conditions.

Advantages and Limitations

Benefits of Thrust Ball Bearings

You gain several important benefits when you use thrust ball bearings in your machinery. These bearings excel at managing axial loads, which helps you maintain proper alignment and stability. Their compact design saves space in your equipment. You also notice that thrust bearings generate less heat, which protects your system from overheating.

Here is a table that highlights the main advantages:

You also benefit from increased efficiency and reduced maintenance. Thrust bearings manage axial loads effectively and reduce friction between moving parts. This design helps you enhance energy efficiency and extend the durability of your mechanical systems. You spend less time on repairs because these bearings are easy to maintain and replace.

Limitations of Thrust Bearings

You should also consider the limitations before choosing a thrust bearing. Thrust bearings do not support radial loads, so you cannot use them where side forces are present. Their performance depends on proper lubrication and clean operating conditions.

Environmental factors can affect how well your bearing works:

• Extreme temperatures can change lubrication properties and material strength. You may need specialized bearings and lubricants for high or low temperatures.

• Moisture and humidity can cause corrosion and speed up wear, which increases the risk of failure.

• Contaminants like dust and chemicals can degrade lubricants and damage bearing surfaces, leading to early failure.

You also find that thrust bearings work best at low speeds and with small to medium axial loads. If you push them beyond their limits, you risk reduced durability and more frequent breakdowns.

Selection, Installation, and Maintenance

Choosing the Right Thrust Bearing

You need to select thrust ball bearings that match your application’s demands. Start by identifying the axial load your system will support. Assess the rotational speed to ensure the bearing can handle the required RPM. Choose the correct bearing type—single direction or double direction—based on your equipment’s needs. Follow guidelines for correct bearing installation to prevent misalignment and ensure smooth operation. Plan a maintenance schedule to check for wear and extend service life.

1. Identify load requirements for your machinery.

2. Consider the rotational speed of your system.

3. Select the bearing type that fits your application.

4. Ensure proper installation for optimal performance.

5. Plan for regular maintenance.

Installation Tips

You achieve optimal performance by following best practices during installation. Select the correct thrust bearing for your specific application. Make sure you avoid eccentric positioning, especially with large bearings on horizontal shafts. Use the right lubricant for your operating conditions, considering load, speed, temperature, and environment.

• Choose the correct bearing for your needs.

• Ensure proper installation to prevent misalignment.

• Apply suitable lubrication based on manufacturer guidelines.

The table below shows common causes of thrust bearing failure during installation:

Maintenance Best Practices

You extend the life of thrust bearings by following a routine maintenance program. Monitor temperature, vibration, and noise levels regularly. Apply lubricant at recommended intervals using proper techniques. Position pump parts correctly to avoid excessive loading. Clean bearings and nearby components every month. Use condition monitoring systems for continuous oversight.

• Monitor temperature, vibration, and noise.

• Lubricate according to manufacturer’s limits.

• Clean and inspect monthly.

• Use advanced monitoring for critical equipment.

Watch for early warning signs of wear or failure, such as abnormal operation, increased noise, excessive vibration, or lubrication problems. If you detect abnormal noise or vibration, identify the type of noise, check for improper installation or damage, and take corrective action by adjusting, lubricating, or replacing the bearing.

Guangzhou Rimao Bearing Co., Ltd. specializes in thrust ball bearings, offering both single and double direction designs tailored for axial load applications. With a full product range, customization options, and expert technical support, we ensure reliable performance, longer service life, and cost-effective solutions for your machinery.
